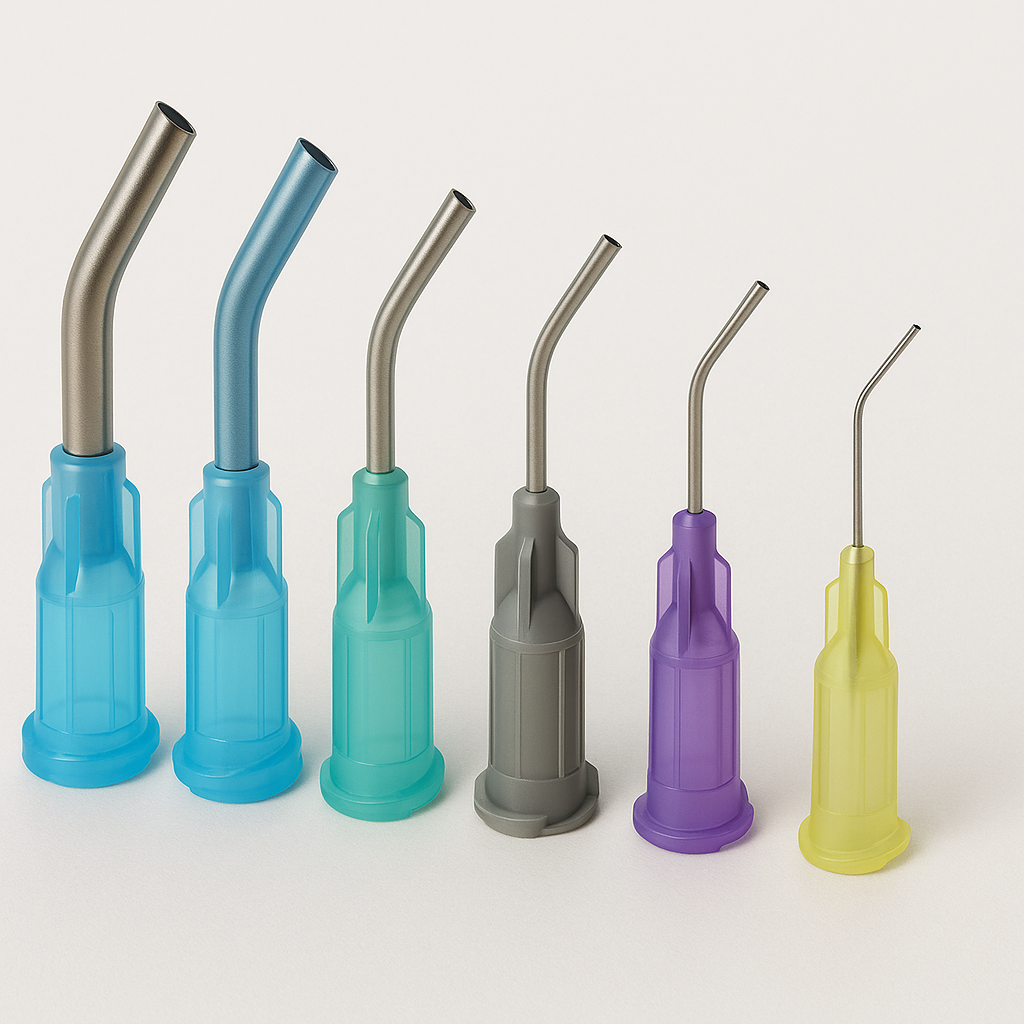

Pre-bent applicator needle tips are essential tools in restorative, cosmetic, and endodontic procedures. Designed with a pre-angled metal cannula attached to a luer-lock hub, these tips allow clinicians to deliver materials with precision—especially in hard-to-reach or highly localized areas. Their flexibility, directional control, and compatibility with a wide range of syringes make them an everyday essential across dental practices.
But not all applicator tips are the same. One of the biggest factors that determines performance is gauge size, as the diameter of the cannula controls flow rate, viscosity handling, and accuracy. Below is a detailed guide to the most commonly used sizes—18, 19, 20, 21, 25, and 27 gauge—and when each is recommended.
Why Gauge Size Matters
Gauge refers to the inner diameter of the cannula.
- Lower gauge = larger diameter → ideal for thicker materials
- Higher gauge = smaller diameter → ideal for thinner, more fluid materials and finer placement
Choosing the right gauge ensures smooth application, prevents clogging, and provides the proper level of control for each material.
Breakdown of Gauge Sizes & Their Common Uses
18 Gauge – Thick, Heavy-Body Materials
The wide diameter of an 18-gauge tip makes it suitable for delivering high-viscosity materials, such as:
- Resin cements
- Glass ionomer base/liner
- Temporary cement
- Gingival retraction paste
- Core buildup materials
- Thick impression materials (localized use)
Its larger lumen reduces pressure during extrusion and prevents clogging.
19 Gauge – Slightly Less Viscous Heavy Materials
A 19-gauge tip is still considered wide but allows a bit more control than 18-gauge. Commonly used for:
- Core materials
- Viscous composite resins
- Provisional materials
- Heavy-bodied flowable materials
- Etch gels that are intentionally thick
This size balances flow efficiency with better directional precision.
20 Gauge – Universal for Medium-Thick Materials
20-gauge needle tips are a versatile middle-ground option, popular for:
- Medium-viscosity resin cements
- Temporary crown/bridge materials
- Heavy flow composites
- Medium-bodied impression materials
- Injectable gingival masks
This gauge offers good control for everyday restorative applications.
21 Gauge – Moderate Viscosity & Controlled Placement
The 21-gauge tip works well when clinicians need a combination of precision and decent flow. It’s commonly used for:
- Etching gels
- Flowable composite
- Sealants
- Calcium hydroxide
- Core cement in narrow access areas
- Desensitizers
This gauge provides a tighter stream without clogging under normal viscosity ranges.
25 Gauge – Fine, High-Precision Placement
A 25-gauge applicator tip is a go-to tool for highly controlled micro-applications. Ideal for low-viscosity fluids, including:
- Bonding agents
- Hemostatic agents
- Low-viscosity etch
- Endodontic irrigants
- Root canal medicaments
- Intricate restorative work along margins
Its narrow diameter offers optimized accuracy in tight areas.
27 Gauge – Extra-Fine, Narrow Access Delivery
The smallest of the commonly used gauges, the 27-gauge tip is perfect when maximum precision is required. Used for:
- Very low-viscosity agents
- Exact placement of adhesives
- Micro-etch application
- Endodontic disinfection solutions
- Lubricants and ultrafine sealants
- Delivering material through extremely tight access points
This gauge provides unmatched detail control in delicate procedures.
Selecting the Right Pre-Bent Tip for Your Procedure
When choosing the correct gauge, consider the following:
1. Material Viscosity
-
Thick → 18–20 gauge
-
Medium → 20–21 gauge
-
Thin → 25–27 gauge
2. Access Requirements
-
Broad access → larger gauges
-
Narrow canals or micro-preps → smaller gauges
3. Precision Needs
-
Fine margin work → 25–27 gauge
-
Bulk placement → 18–20 gauge
4. Operator Preference
Clinicians often keep multiple gauges on hand to seamlessly switch based on material consistency and procedural stage.
Pre-bent applicator needle tips may seem simple, but selecting the correct gauge dramatically improves handling, delivery accuracy, and material performance. With options ranging from 18 to 27 gauge, dental professionals can tailor application techniques to maximize efficiency and clinical outcomes.
