In modern dentistry, accuracy and precision are key to delivering high-quality restorations and appliances. One of the essential tools in achieving this is the impression tray—a device that may seem simple but plays a critical role in capturing detailed impressions of a patient’s teeth and oral structures.
Whether you’re a dental professional, dental student, or just curious about how dental impressions work, this blog post will provide a comprehensive look at dental impression trays, including their types, uses, and available sizes.
What is a Dental Impression Tray?

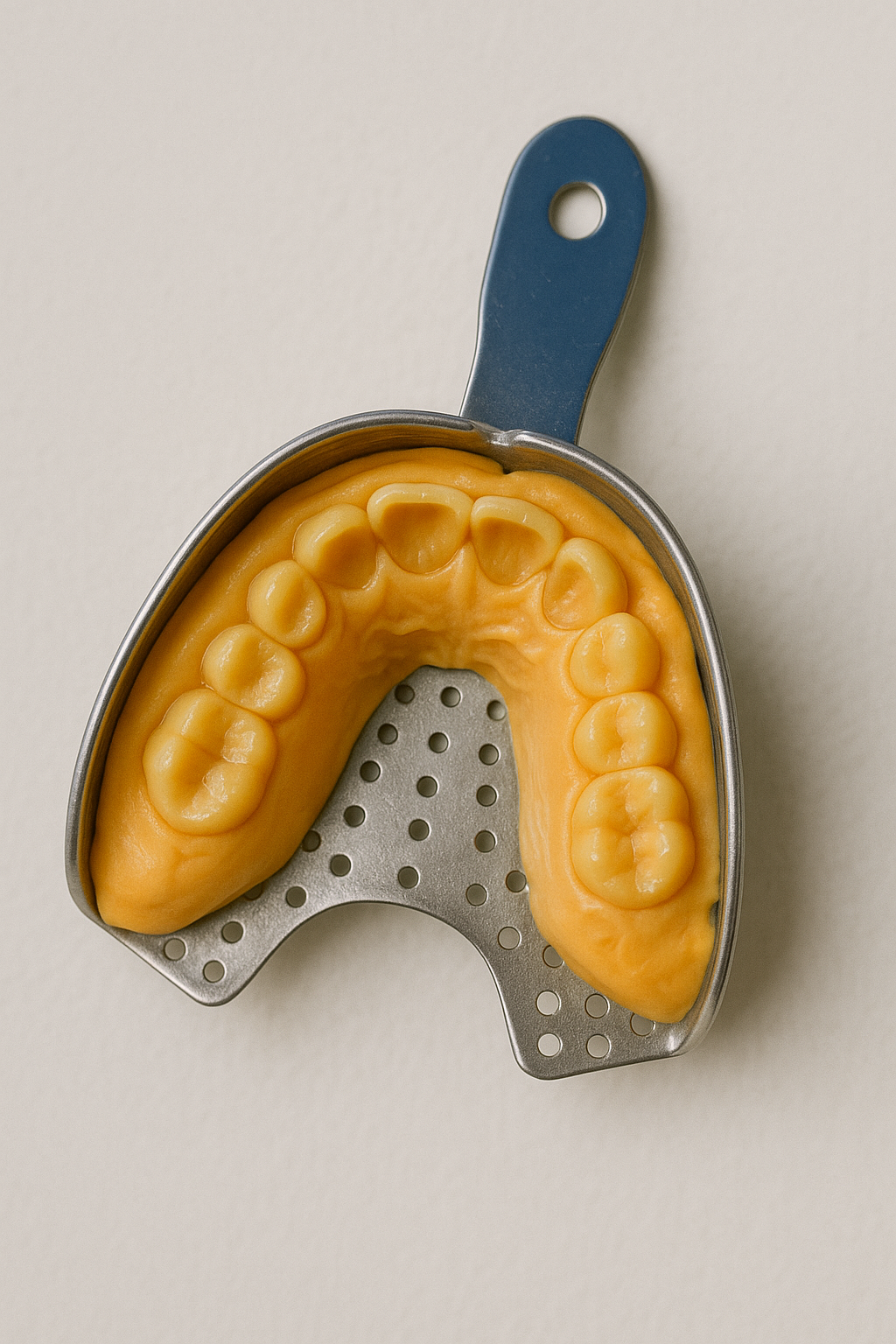

A dental impression tray is a horseshoe-shaped carrier designed to hold impression material as it is placed into a patient’s mouth. Once inserted, the material conforms to the shape of the teeth, gums, and surrounding tissues. After it sets, the tray and material are removed, capturing an accurate negative replica of the oral structures.
Why Are Impression Trays Important?
Impression trays are foundational for several dental procedures:
- Creating crowns, bridges, and dentures
- Fabricating orthodontic appliances
- Diagnostic models and treatment planning
- Mouthguards, bleaching trays, and nightguards
- Surgical guides for implants
Without a properly fitting tray, the final impression may be distorted, leading to poor clinical outcomes.
Types of Dental Impression Trays
Impression trays come in a variety of types to suit different procedures and patient needs:
1. Stock Trays
These are pre-manufactured in standard sizes. They are the most commonly used trays and are typically made of metal or plastic.
- Metal Stock Trays: Durable, reusable, and autoclavable.
- Plastic Stock Trays: Disposable and cost-effective, but less rigid.
2. Custom Trays
Made specifically for a patient from a preliminary impression. They provide superior accuracy for procedures like crowns, bridges, or complete dentures.
3. Dual-Arch or Triple Trays
These trays capture the maxillary and mandibular arches and the bite registration in one step. Commonly used in single-tooth restorations.
4. Perforated vs. Non-Perforated Trays
- Perforated Trays: Feature holes to help mechanically lock the impression material in place.
- Non-Perforated Trays: Rely on adhesive to retain the impression material.
Impression Tray Sizes Explained
Impression trays are available in a variety of sizes, typically categorized as small (S), medium (M), and large (L). Some manufacturers may also offer extra-small (XS) or extra-large (XL) options. Sizing can vary slightly between brands, so it's always essential to refer to the specific manufacturer's sizing chart.
Maxillary (Upper Arch) Trays
- Designed to accommodate the upper jaw.
- Have a raised palatal area to support material against the palate.
- Often marked as U1, U2, U3 (Small, Medium, Large) or #1, #2, #3, depending on brand.
Mandibular (Lower Arch) Trays
- Designed for the lower jaw.
- Shaped to allow space for the tongue.
- Typically marked as L1, L2, L3 or #1, #2, #3.
Pediatric Trays
- Specifically designed for children.
- Available in both upper and lower forms.
- Marked as Pedo-Small, Pedo-Medium, and Pedo-Large.
Pro Tip:
Always ensure the tray:
- Covers all the teeth (including molars)
- Extends to the vestibule
- Leaves a slight space (2–3mm) between teeth and tray for adequate material bulk
How to Choose the Right Size Tray
Choosing the correct tray size ensures comfort for the patient and accuracy in the impression. Here are some quick tips:
-
Try in the Tray First: Dry-fit the tray before applying impression material.
-
Check Posterior Coverage: Make sure the tray extends over the last molars.
-
Avoid Excessive Pressure: If the tray presses too tightly against teeth or tissues, go up a size.
-
Use Spacer Wax or Tray Adhesive: For added accuracy and retention.
Final Thoughts
Though often overlooked, impression trays are an essential part of every dental practice. Using the right type and size of tray is crucial for obtaining high-quality, distortion-free impressions. A well-fitting impression tray ensures better clinical results, increased patient comfort, and fewer remakes.
So next time you reach for an impression tray, take a moment to consider the size and shape—you’ll be laying the foundation for excellent dental care.
